Location:Home > Products > Grinding & Polishing > polishing machine > TM-CHEETAH:High Speed Polishing Equipment

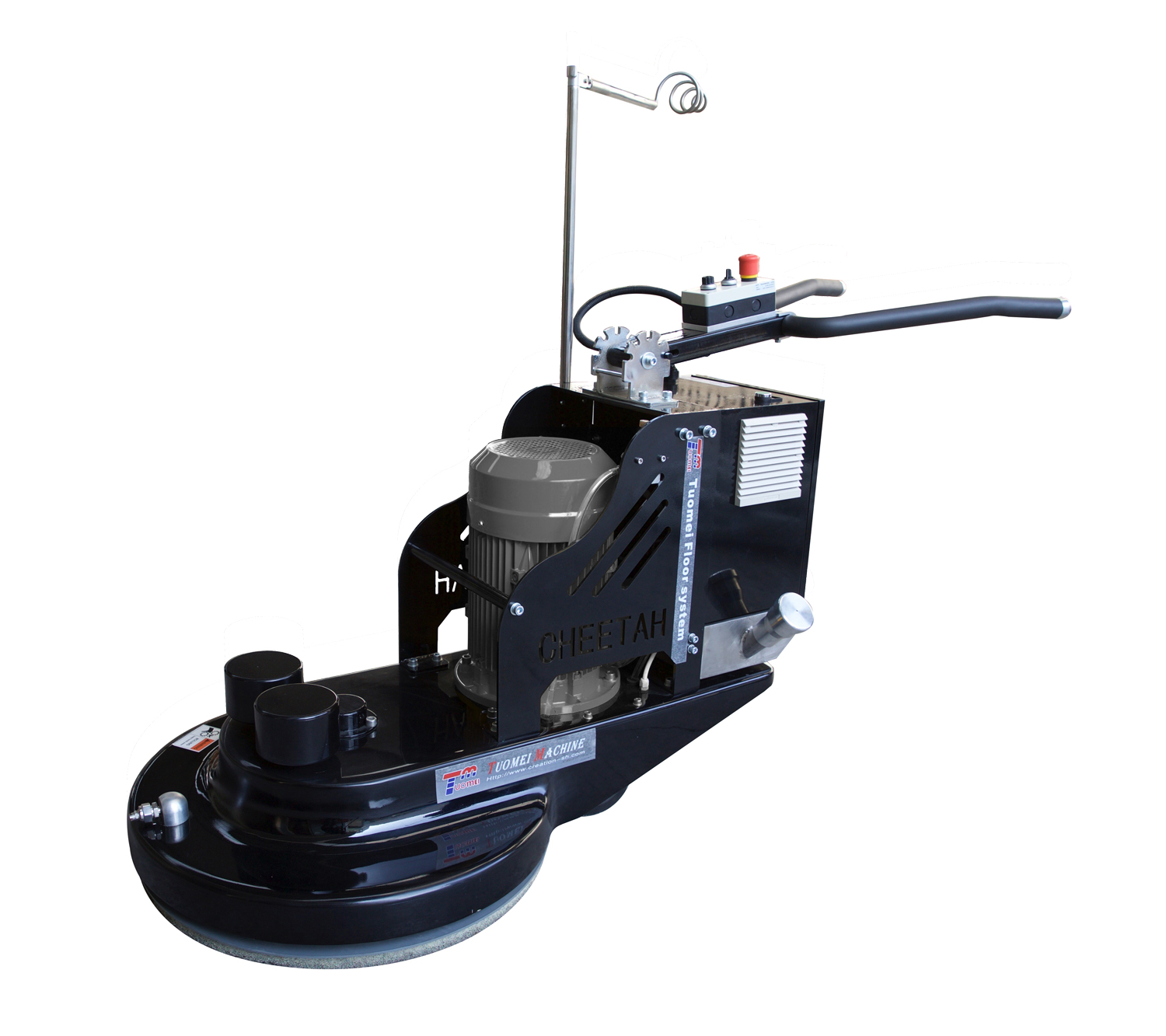

TM-CHEETAH:High Speed Polishing Equipment

      TM-CHEETAH was born in 2011, is China's first large expansion high speed ground treatment equipment. Compared to traditional construction operations, increase several times of the effectiveness, substantially save labor costs and improve the ground table light effect. Since of the amazing efficiency, the machine is named CHEETAH. Not only the machine can be used in later period polishing treatment, equipped with special polishing pads, but also can be better used to grind and polish the ground that is low ground flatness requirements. It marks that Tuomei company provides with the serialized ground handling solutions equipments.


      TM-CHEETAH is the high speed polishing equipment, work area 700mm and maximum speed 2500 rpm. Omit 3-4 steps procedures compared to traditional construction and reach the same construction effect. Equipped with special soft polishing pad; only 3 steps procedures can grind and polish the wear resistant floor; Change the defects of uneven explicit surface of traditional construction floor, poor appearance effect, high construction cost and so on. The unique mechanical design can improve the sticking force to the ground during mechanical operation; high efficiency and high speed equipment characteristics; 5-6 times than ordinary machinery and laid the foundation for the new technology of wear resistant floor construction — Grout- protection Construction.


  • Technical parameters
  • Description
  • Applications
  • Projects

TM-CHEETAH

High Speed Polishing Equipment

Ampere

16~20A

Frequency

50Hz

Motor

ABB 10HP

Inverter

Schneider 11KW

Water-tank

10L

Work area

700mm

Weight

170kg

Height

800mm

Width

700mm

Rotation

0~2500rpm

Voltage

3 phase 380V/220V/460V




















      TM-CHEETAH was born in 2011, is China's first large expansion high speed ground treatment equipment. Compared to traditional construction operations, increase several times of the effectiveness, substantially save labor costs and improve the ground table light effect. Since of the amazing efficiency, the machine is named CHEETAH (Cheetah). Not only the machine can be used in later period polishing treatment, equipped with special polishing pads, but also can be better used to grind and polish the ground that is low ground flatness requirements. It marks that Tuomei company provides with the serialized ground handling solutions equipments.


      TM-CHEETAH is the high speed polishing equipment, work area 700mm and maximum speed 2500 rpm. Omit 3-4 steps procedures compared to traditional construction and reach the same construction effect. Equipped with special soft polishing pad; only 3 steps procedures can grind and polish the wear resistant floor; Change the defects of uneven explicit surface of traditional construction floor, poor appearance effect, high construction cost and so on. The unique mechanical design can improve the sticking force to the ground during mechanical operation; high efficiency and high speed equipment characteristics; 5-6 times than ordinary machinery and laid the foundation for the new technology of wear resistant floor construction — Grout- protection Construction.
