TM-ELEPHANT :Grinding Machine


Born in 2009, TM-Elephant acknowledges new aspect design for full gear-driving four rotation planetary grinder. To ensure the construction efficiency, meanwhile, it can further improve construction standard and enhance the machine function of higher standard to meet different construction requirement market home and abroad and widen market development direction. It gives high quality promise for China-made machine creating brand on international arena.

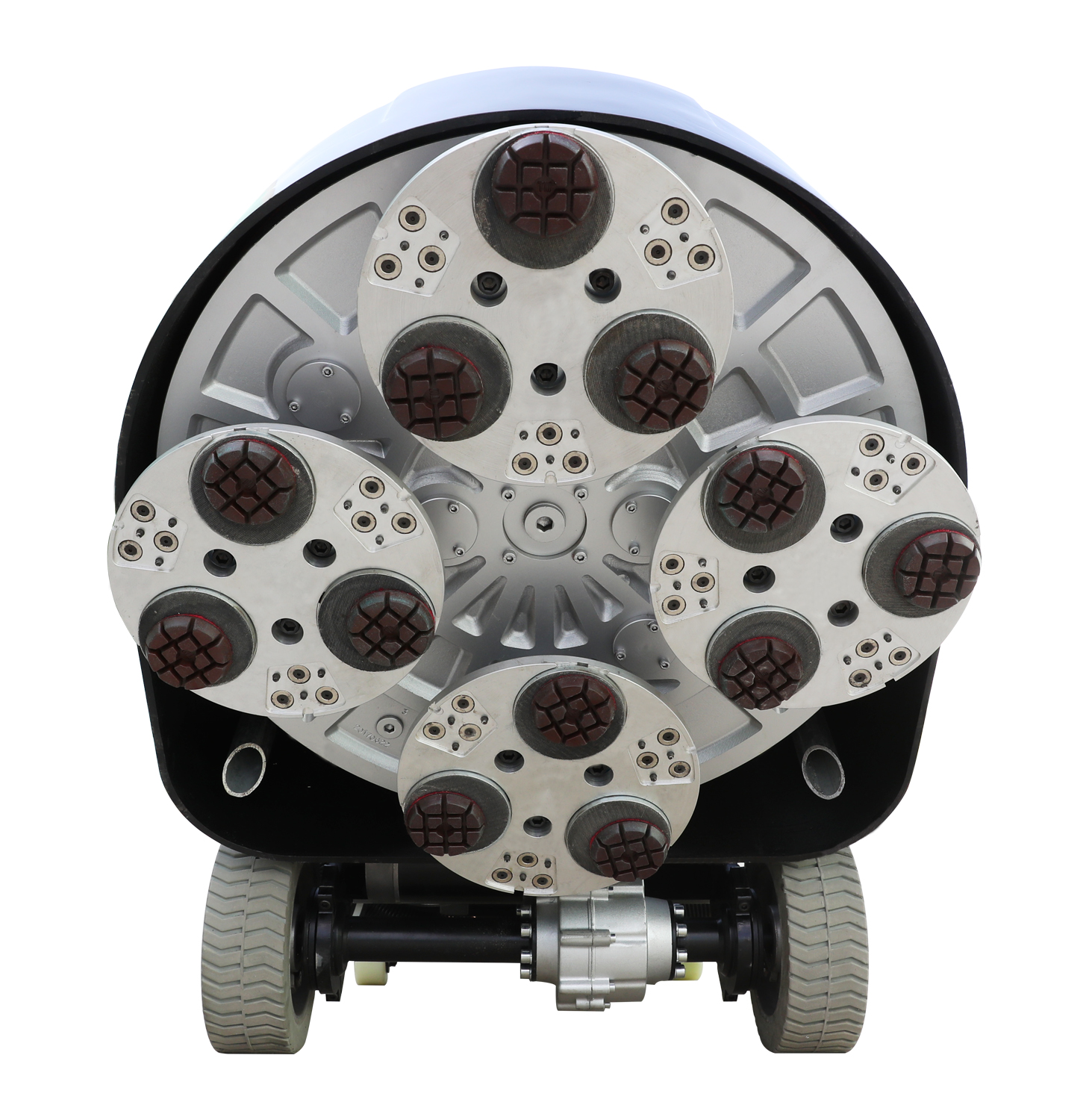

    TM-ELEPHANT is a large-scale integrated grinding and polishing equipment and is one of our company patent products. It uses all gear rotation mode and high-power motors, which makes the machine reliability and grind forceful. At the same time the machine revolution leads four grinding heads running in different directions, offsets the traction effectively between the grinding head to make the operation smoothly and easily. The same work area between the two grinding head enhances the scope of grinding. It can be fitted with 20 different abrasive pads to make the operation more effectively.


  • Technical parameters
  • Description
  • Applications
  • Projects

TM-ELEPHANT Floor grinding polishing machine

Ampere

30A

Frequency

50Hz/60Hz

Motor

15HP/11KW

Inverter

15KW

Work area

800mm

Weight

500kg

Height

1200mm

Width

800mm

Revolution

0~300rpm

Rotation

0~1200rpm

Water tank

30L,plastic rolling molds

Voltage

3 phase 220V/380V/460V


FLOOR GRINDING/POLISHING MACHINE

Born in 2009, TM-Elephant acknowledges new aspect design for full gear-driving four rotation planetary grinder. To ensure the construction efficiency, meanwhile, it can further improve construction standard and enhance the machine function of higher standard to meet different construction requirement market home and abroad and widen market development direction. It gives high quality promise for China-made machine creating brand on international arena.

    TM-ELEPHANT is a large-scale integrated grinding and polishing equipment and is one of our company patent products. It uses all gear rotation mode and high-power motors, which makes the machine reliability and grind forceful. At the same time the machine revolution leads four grinding heads running in different directions, offsets the traction effectively between the grinding head to make the operation smoothly and easily. The same work area between the two grinding head enhances the scope of grinding. It can be fitted with 20 different abrasive pads to make the operation more effectively.
