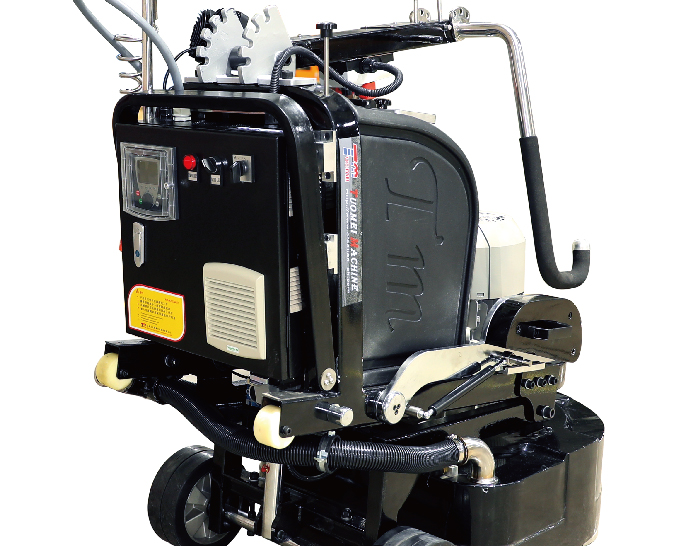

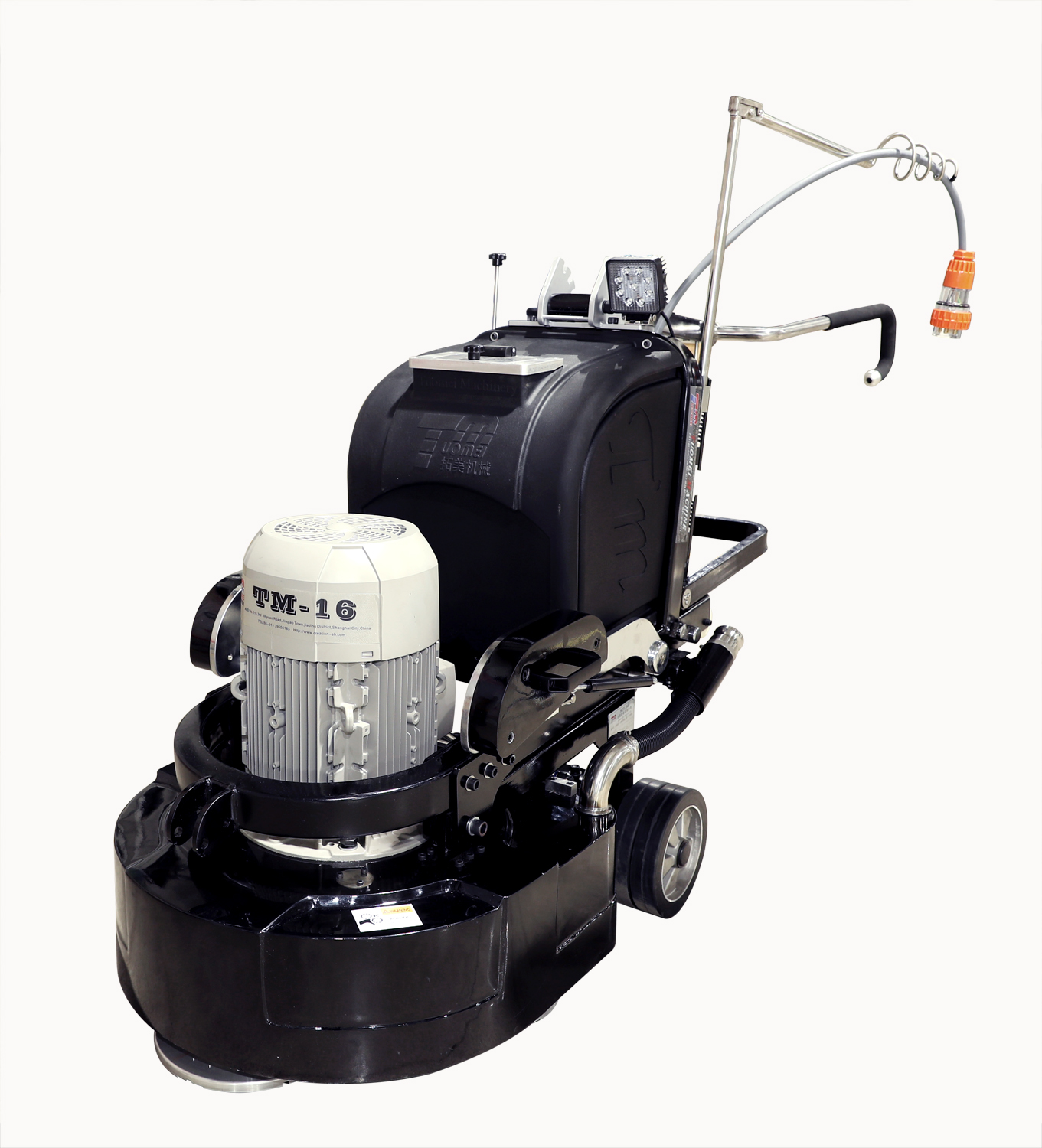

TM-16:Grinding Machine



      Born in 2007, TM-16 is the first global unique designed double level gear-driving grinding machine which acknowledges fixed speed proportion grinder operation mode. This machine has large working area with high working efficiency and can effectively save enterprise human cost. It leads the healthy and orderly development of floor industry.

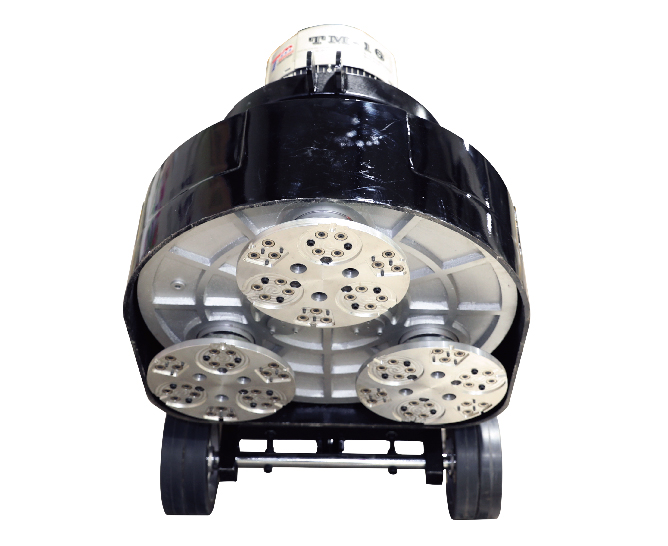

TM-16 is a grinding machine designed for large scale construction. Equipped with high power motor and convert device, it can satisfy large scale concrete construction requirements. With electric grinder pressure adjusting device, it can satisfy different construction step requirement to be used in floor polishing and surface preparation. This machine can fix large hole double vacuum cleaner to satisfy dustless construction requirement. Three head planetary and cushion grinder leveling device. The grinder rotation speed can be up to 1200 rpm. Different grinder attachment can choose different metal segments and pads to largely increase work efficiency and reduce construction cost.

  • Technical parameters
  • Description
  • Applications
  • Projects


TM-16 Floor grinding polishing machine

Ampere

30A

Frequency

50Hz/60Hz

Motor

15HP/11KW

Inverter

15KW

Work area

800mm

Weight

450kg

Height

1200mm

Width

800mm

Revolution

0~300rpm

Rotation

0~1200rpm

Water tank

30L,plastic rolling molds

Voltage

3 phase 220V/380V/460V



      TM-16:Grinding Machine

      Born in 2007, TM-16 is the first global unique designed double level gear-driving grinding machine which acknowledges fixed speed proportion grinder operation mode. This machine has large working area with high working efficiency and can effectively save enterprise human cost. It leads the healthy and orderly development of floor industry.

TM-16 is a grinding machine designed for large scale construction. Equipped with high power motor and convert device, it can satisfy large scale concrete construction requirements. With electric grinder pressure adjusting device, it can satisfy different construction step requirement to be used in floor polishing and surface preparation. This machine can fix large hole double vacuum cleaner to satisfy dustless construction requirement. Three head planetary and cushion grinder leveling device. The grinder rotation speed can be up to 1200 rpm. Different grinder attachment can choose different metal segments and pads to largely increase work efficiency and reduce construction cost.
